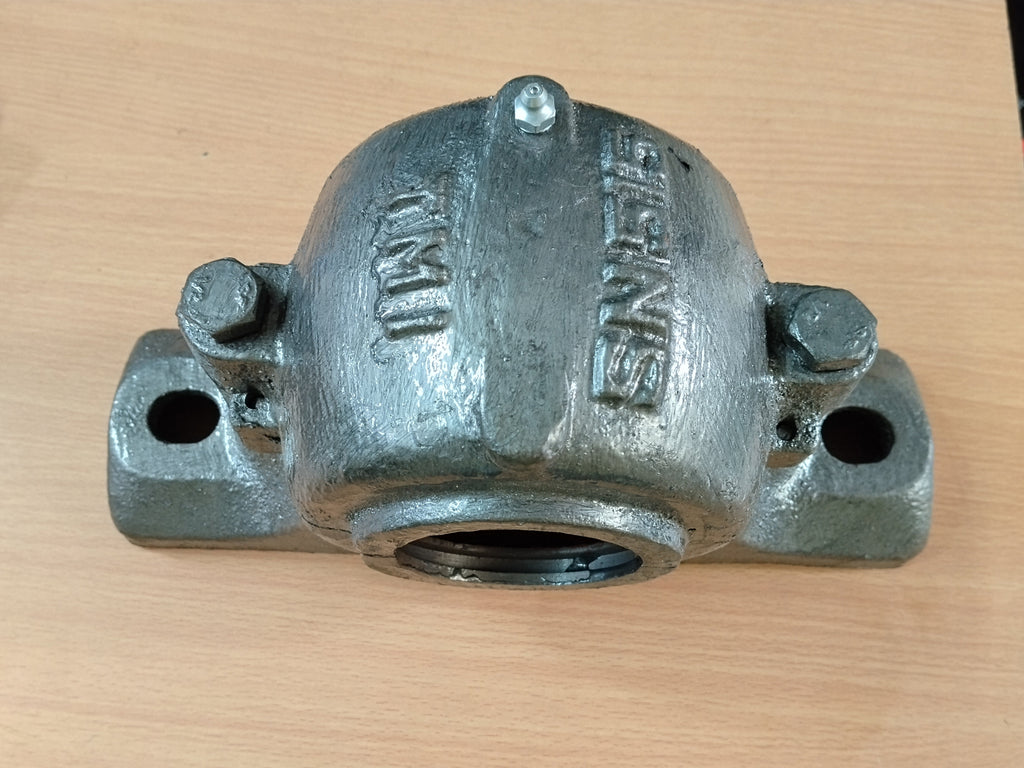

A cast iron SN 515 PLUMMER BLOCK resting on a light wood surface.
  • A cast iron SN 515 PLUMMER BLOCK resting on a light wood surface.

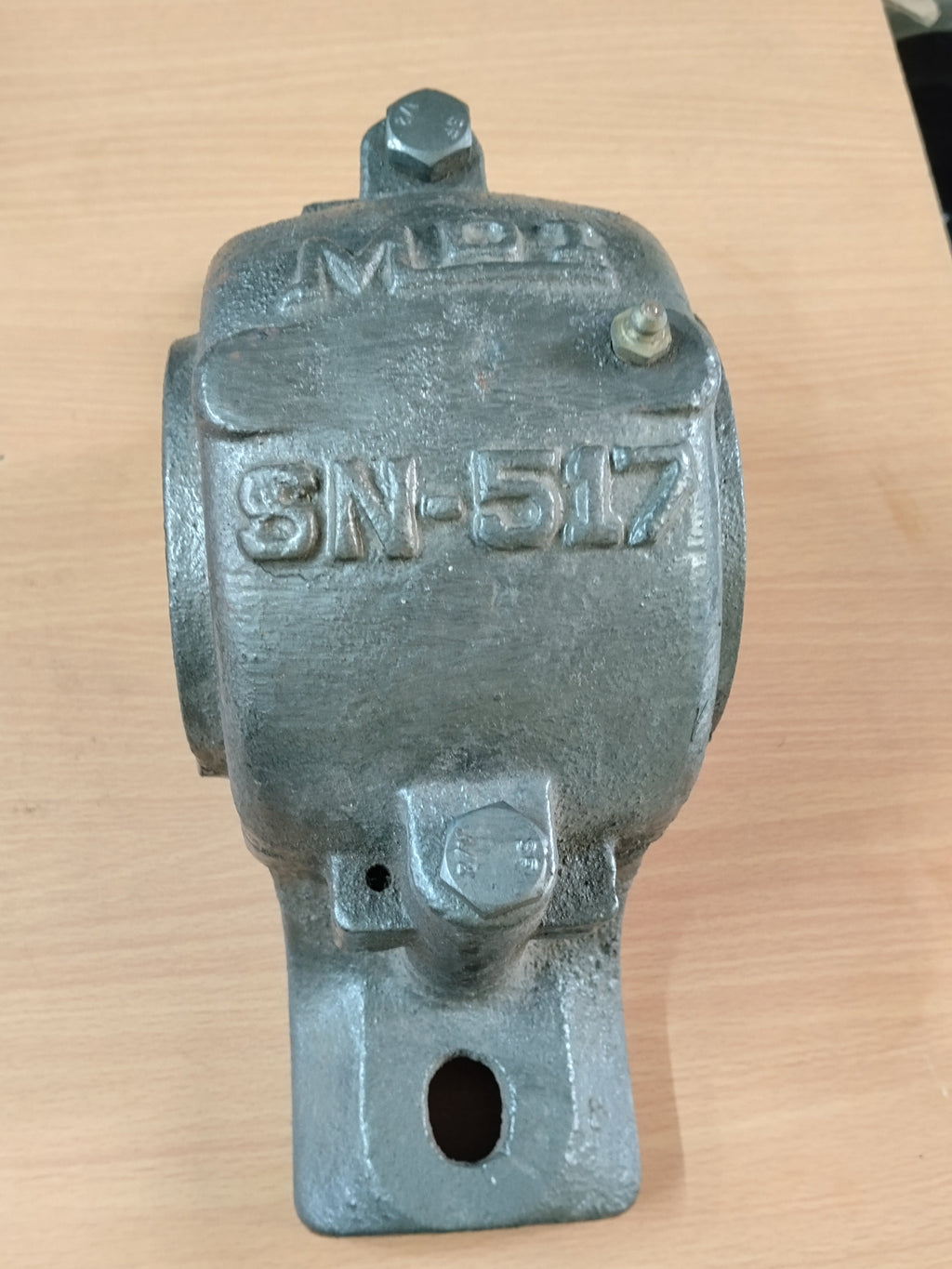

  • A cast iron SN 517 PLUMMER BLOCK resting on a light wood tabletop.

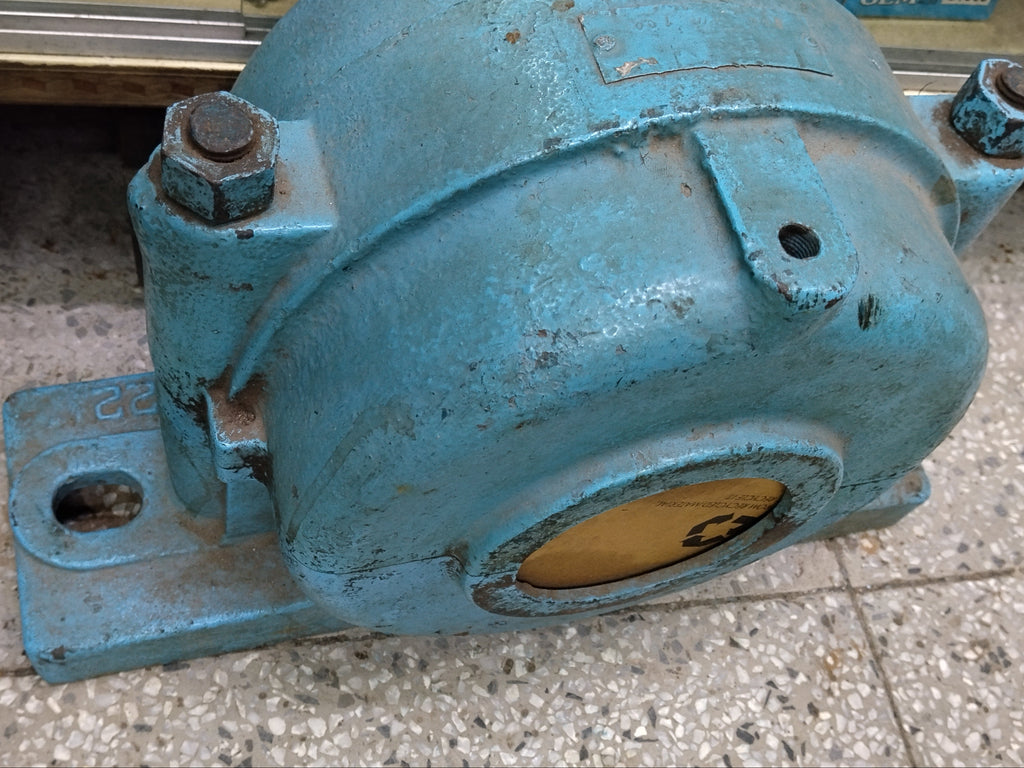

  • A heavy-duty industrial metal housing PLUMMER BLOCK SN 622

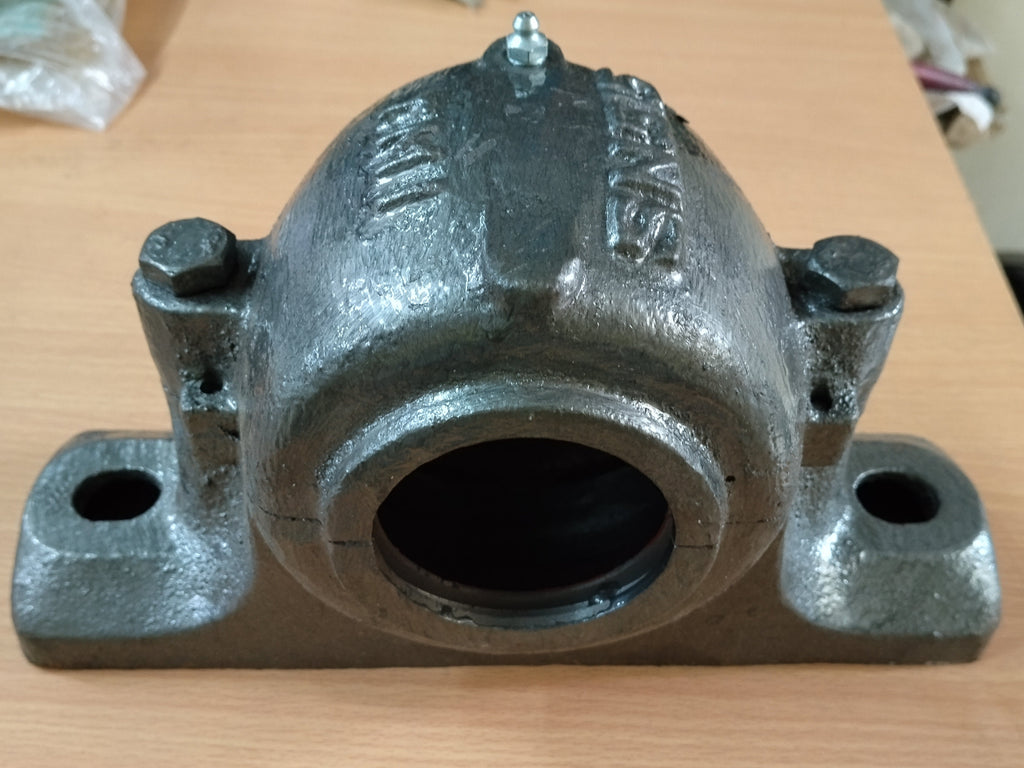

  • A CAST IRON SN 515 PLUMMER BLOCK

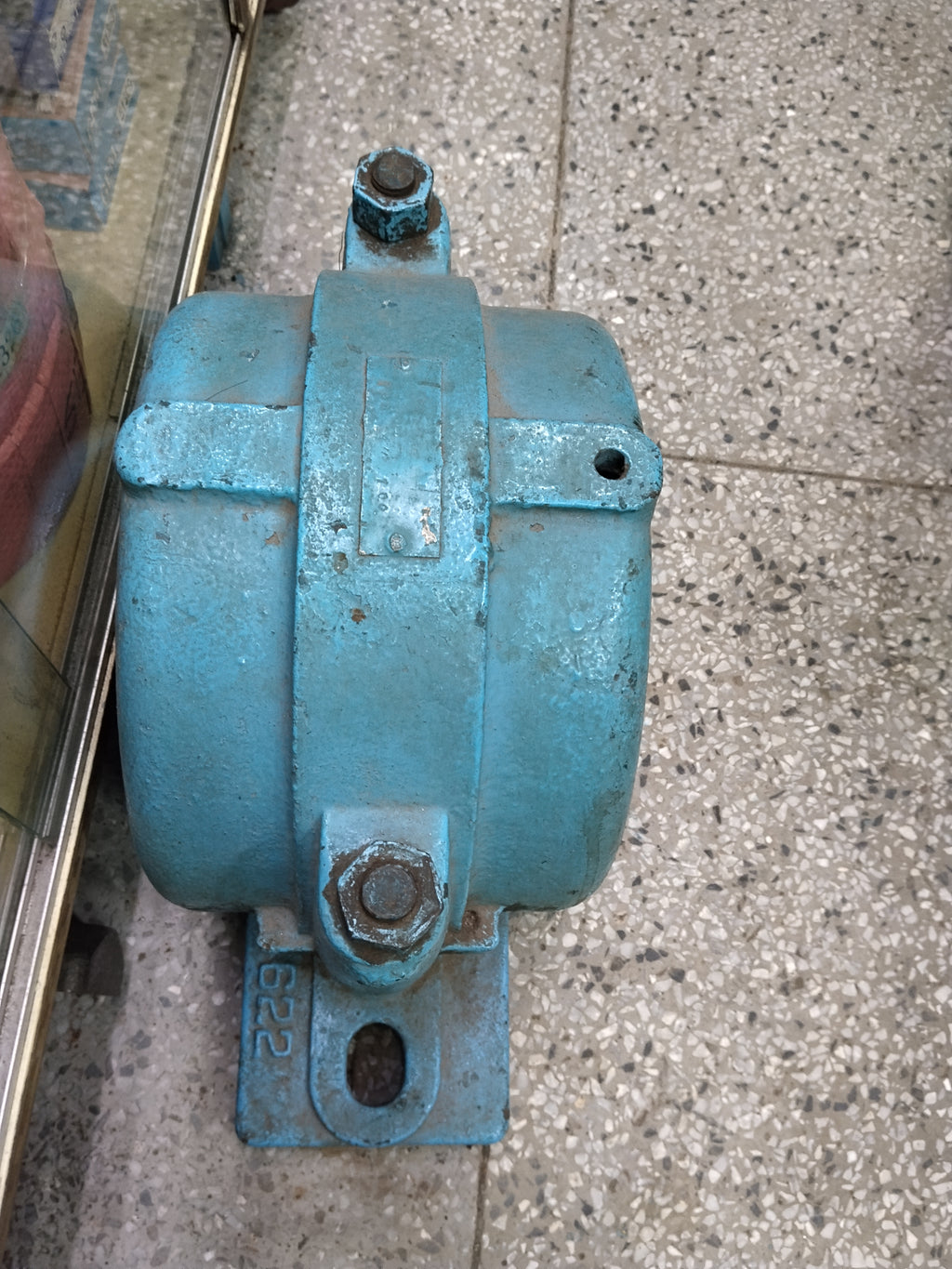

  • SN Series Plummer Block Housings (SN 500 & SN 600 Series) | Split Cast Iron Bearing Housings

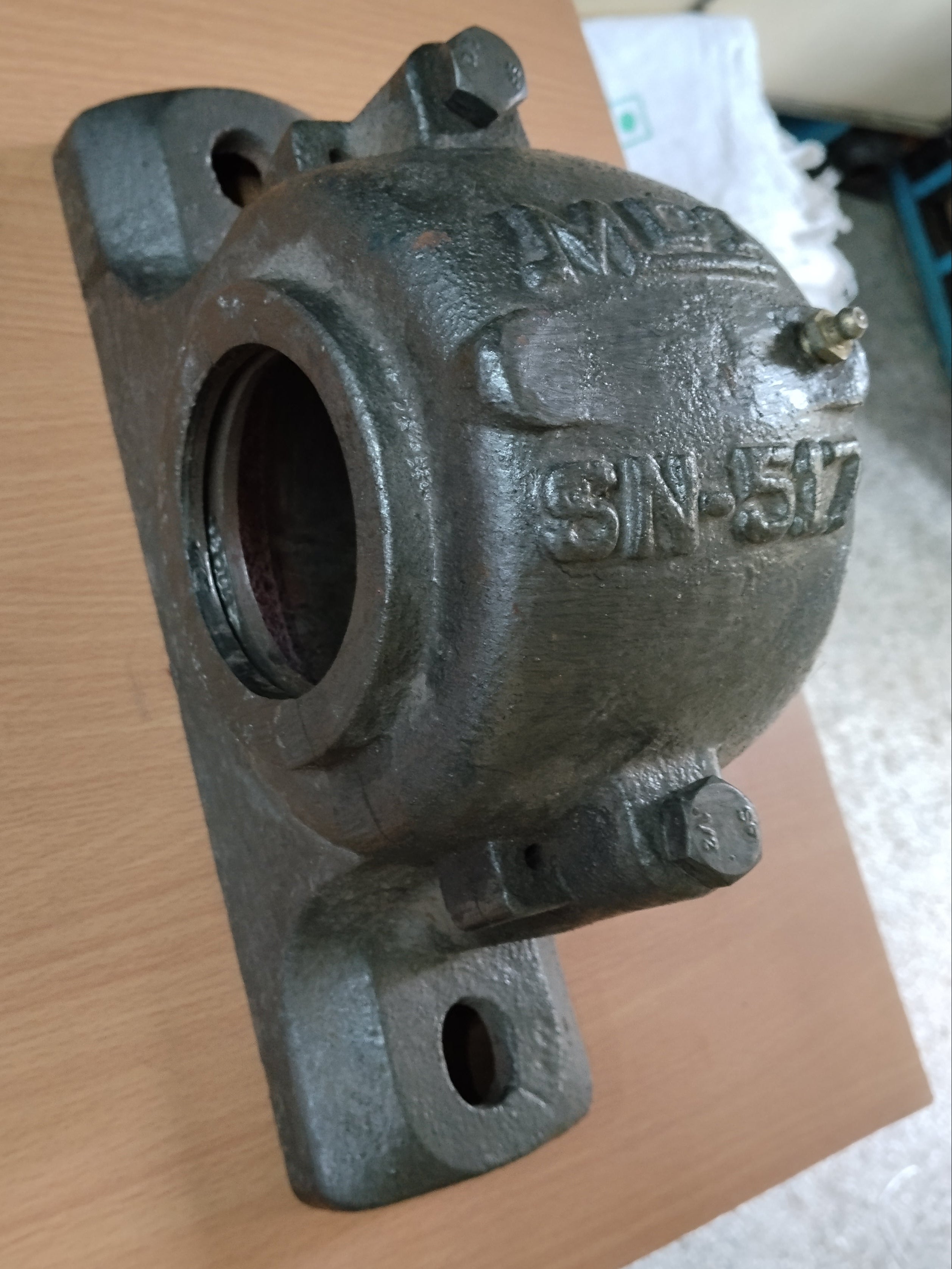

  • A cast iron PLUMMER BLOCK with stamped text 'SN-517' and 'MIL' on a light wood tabletop.
  • A cast iron SN 515 PLUMMER BLOCK resting on a light wood surface.
  • A cast iron SN 517 PLUMMER BLOCK resting on a light wood tabletop.
  • A heavy-duty industrial metal housing PLUMMER BLOCK SN 622
  • A CAST IRON SN 515 PLUMMER BLOCK
  • SN Series Plummer Block Housings (SN 500 & SN 600 Series) | Split Cast Iron Bearing Housings
  • A cast iron PLUMMER BLOCK with stamped text 'SN-517' and 'MIL' on a light wood tabletop.
SN Series Plummer Block Housings (SN 500 & SN 600 Series) | Split Cast Iron Bearing Housings

SN Series Plummer Block Housings (SN 500 & SN 600 Series) | Split Cast Iron Bearing Housings

Plummer blocks (split bearing housings) are designed to support heavy radial loads and self-aligning bearings in demanding industrial environments. They protect spherical roller bearings and self-aligning ball bearings from dust, moisture, and contaminants while maintaining precise shaft alignment under heavy operational vibration.

At Rajasthan Bearings, we stock a complete range of split Plummer Block housings (SN, SNH, SNA, and SD Series) as well as mounted unit housings (UCP, UCF, UCFL, UCT), manufactured in high-grade Grey Cast Iron (FG 200/250) and Ductile Iron for maximum fracture resistance.

We supply standard and customized plummer blocks for conveyors, crushers, paper mills, steel plants, and heavy machinery across West Bengal and eastern India.

Complete Size Range & Series Breakdown

We stock and supply the complete spectrum of light, medium, and heavy-duty SN series housings:

1. SN 500 Series (For Light-to-Medium Duty Bearings on Adapter Sleeves)

Used with 1200K, 2200K self-aligning ball bearings and 22200K spherical roller bearings on H-series adapter sleeves.

  • Available Sizes:

    • Compact Shafts (20mm – 45mm): SN 505, SN 506, SN 507, SN 508, SN 509, SN 510

    • Mid-Range Shafts (50mm – 80mm): SN 511, SN 512, SN 513, SN 514, SN 515, SN 516, SN 517, SN 518

    • Large Industrial Shafts (85mm – 140mm): SN 519, SN 520, SN 522, SN 524, SN 526, SN 528, SN 530, SN 532

2. SN 600 Series (For Heavy-Duty Bearings on Adapter Sleeves)

Designed for higher load ratings and larger diameter bearing bores, accommodating 1300K, 2300K, and 22300K series bearings.

  • Available Sizes:

    • Compact Shafts (20mm – 45mm): SN 605, SN 606, SN 607, SN 608, SN 609, SN 610

    • Mid-Range Shafts (50mm – 80mm): SN 611, SN 612, SN 613, SN 615, SN 616, SN 617, SN 618

    • Large Industrial Shafts (85mm – 140mm): SN 619, SN 620, SN 622, SN 624, SN 626, SN 628, SN 630, SN 632

Applications & Industries

  • Conveyor Systems & Material Handling

  • Crushers, Ball Mills & Mining Machinery

  • Agricultural Machinery & Flour Mills

  • Pulp & Paper Mill Drives

  • Industrial Blowers, Fans & Pumps

Why Source From Rajasthan Bearing & Mill Stores, Kolkata?

  • Stock Availability

  • Complete Assembly Kits

  • Multiple Brand Options

  • Expert Technical Matching
